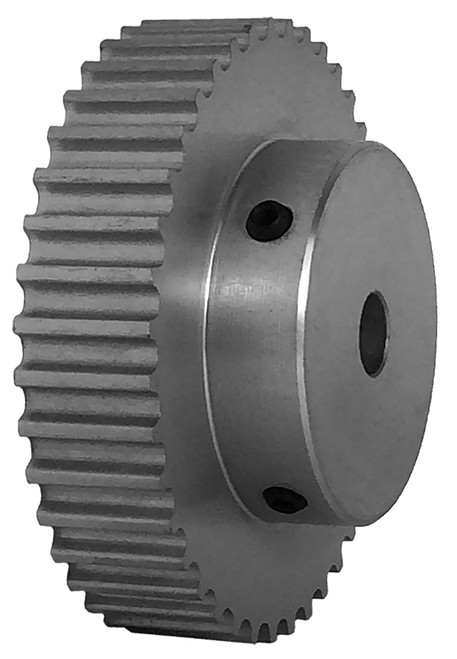

40-5M09-6A4, Timing Pulley

40-5M09-6A4

Click to Enlarge

40-5M09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 40-5M09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	40-5M09-6A4
Teeth	40
Tooth Style	HTD5mm
For Belt Width (mm)	9.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.313
Bore Description	5/16 Inch Finished Bore
Pitch Diameter (in)	2.506
Outside Diameter (in)	2.461
Face Width (in)	0.546
Overall Length (in)	0.937
Hub Diameter (in)	1.500
Min. Bore (in)	0.3125
Unit System	Inch
P.D. (mm)	64.00
O.D. (mm)	62.50
MOQ	1
Weight (lb)	0.33
Part Number Cross Reference	A 6A25-040NF0910, A6A25-040NF0910, P40-5M-09AL, 40M5-L09M-6, PT040G08L09N, 40-5M-09 X 5/16, 40-5M09-6A4, 40-5M09-6A4
Set Screw Quantity	2
