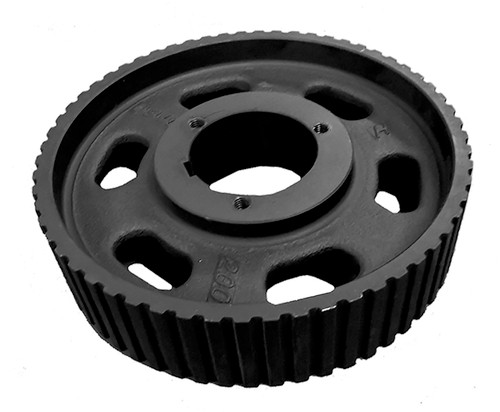

40HQ200, Timing Pulley

40HQ200 - Cast Iron Imperial Pitch Pulleys

Product Details for 40HQ200

Comparable to: 40HQ200

40HQ200, Timing Pulley, Cast Iron

Learn more about 40HQ200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40HQ200
Teeth 40
Tooth Style H
For Belt Width (in) 2.000
Type E1F
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) Q1
Pitch Diameter (in) 6.386
Outside Diameter (in) 6.312
Flange Diameter (in) 6.563
Face Width (in) 2.500
Overall Length (in) 2.781
Min. Bore (in) 0.750
Unit System Inch
Bushing Q1
Max. Bore (in) 2.4375
Weight (lb) 12.95
Part Number Cross Reference 40HQ200
