40MP012M6FA6, Timing Pulley

40MP012M6FA6 - Aluminum Metric Pulleys

40MP012M6FA6

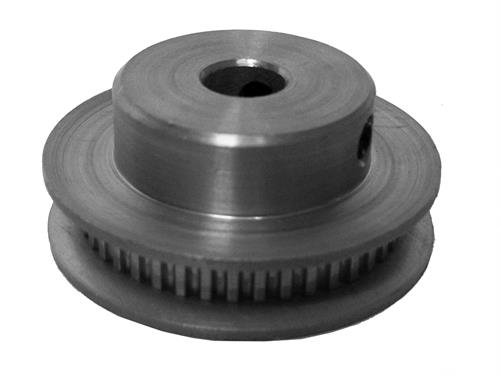

Click to Enlarge

40MP012M6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 40MP012M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40MP012M6FA6
Teeth 40
Tooth Style MXL
For Belt Width (in) 0.1250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.019
Outside Diameter (in) 0.999
Flange Diameter (in) 1.210
Pulley Belt Width (mm) 4.00
Unit System Metric
P.D. (mm) 26.00
O.D. (mm) 25.40
Flange Diameter (mm) 30.70
Face Width (mm) 7.00
Overall Length (mm) 13.50
Hub Diameter (mm) 19.20
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6N16M040DF3006, A6N16M040DF3006, TP7A6MW2-40, 40MP012M6FA6, 40MP012M6FA6
Set Screw Quantity 2
