40MP025-IA3 Imperial Pitch Pulleys

40MP025-IA3, A 6D16-040DF2508

Product Details for 40MP025-IA3

Comparable to: 40MP025-IA3, A 6D16-040DF2508,

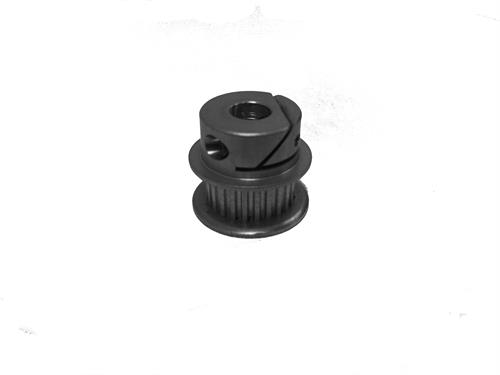

40MP025-IA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum, E-Z Lock Hub

Specifications

Product Number 40MP025-IA3
Teeth 40
Tooth Style MXL
For Belt Width (in) 0.250
Type 6FI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 1.019
Outside Diameter (in) 0.999
Flange Diameter (in) 1.210
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.750
Min. Bore (in) 0.25
Unit System Inch
Number & Screw Size 1 x 4-40
Weight (lb) 0.07
List Price (1-9 Qty.) (USD) 15.523
Discount Price (10-24 Qty.) (USD) 15.1145
Discount Price (25-49 Qty.) (USD) 12.6445
Discount Price (50-99 Qty.) (USD) 9.117
Discount Price (100-249 Qty.) (USD) 8.127
Part Number Cross Reference 40MP025-IA3, A 6D16-040DF2508,

Documentation

Download Catalog 2015_BBMAN_CATALOG_5.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 40MP025-IA3_REACH_cert
RoHS Certification 40MP025-IA3_RoHS_cert
