40MP025MIA6 Metric Pulleys

40MP025MIA6, A 6D16M040DF6006

Product Details for 40MP025MIA6

Comparable to: 40MP025MIA6, A 6D16M040DF6006,

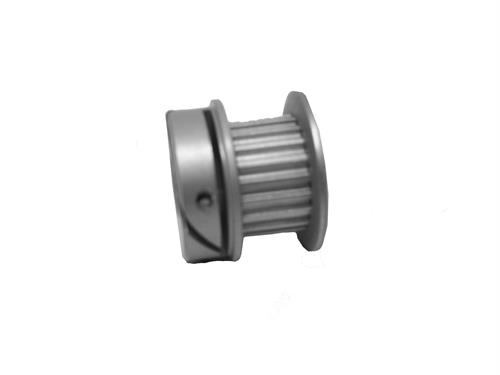

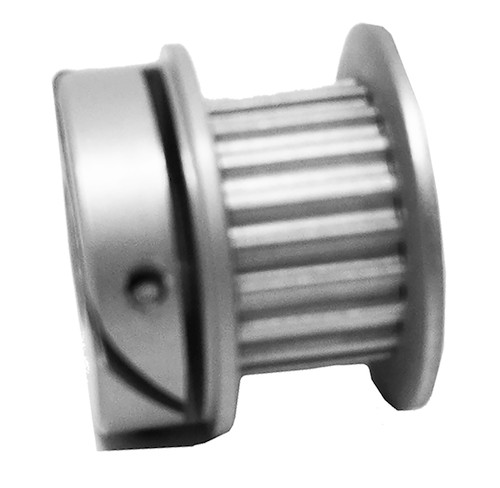

40MP025MIA6, Timing Pulley, Powerhouse Timing, 6 mm Bore, Aluminum, E-Z Lock Hub

Specifications

Product Number 40MP025MIA6
Teeth 40
Tooth Style MXL
For Belt Width (in) 0.250
Type 6FI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 6.00
Unit System Metric
P.D. (mm) 25.90
O.D. (mm) 25.40
Flange Diameter (mm) 30.70
Face Width (mm) 10.30
Overall Length (mm) 18.30
Hub Diameter (mm) 19.10
Number & Screw Size 1 x M3
Weight (lb) 0.07
List Price (1-9 Qty.) (USD) 15.523
Discount Price (10-24 Qty.) (USD) 15.1145
Discount Price (25-49 Qty.) (USD) 12.6445
Discount Price (50-99 Qty.) (USD) 9.117
Discount Price (100-249 Qty.) (USD) 8.127
Part Number Cross Reference 40MP025MIA6, A 6D16M040DF6006,

Documentation

Download Catalog 2015_BBMAN_CATALOG_10.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 40MP025MIA6_REACH_cert
RoHS Certification 40MP025MIA6_RoHS_cert
