40XL037-6A4 Imperial Pitch Pulleys

40XL037-6A4 - Aluminum Imperial Pitch Pulleys

Product Details for 40XL037-6A4

Comparable to: 40XL037-6A4, A 6A3-40NF03710, A6A3-40NF03710, PB40XL037, 78230201, 40XLB037, 40AXL037-5/16, 20182075, 113415, 40XL0

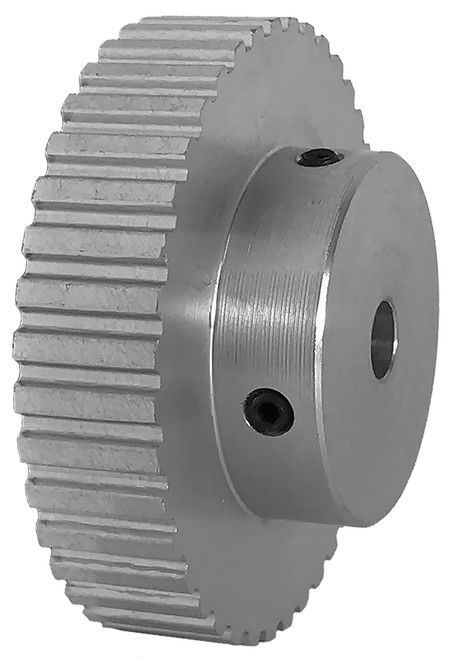

40XL037-6A4, Timing Pulley, Powerhouse Timing, 5/16 Inch Bore, Aluminum

Specifications

Product Number 40XL037-6A4
Teeth 40
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.526
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.3125
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.36
Part Number Cross Reference 40XL037-6A4, A 6A3-40NF03710, A6A3-40NF03710, PB40XL037, 78230201, 40XLB037, 40AXL037-5/16, 20182075, 113415, 40XL0
