40XXHS500, Timing Pulley

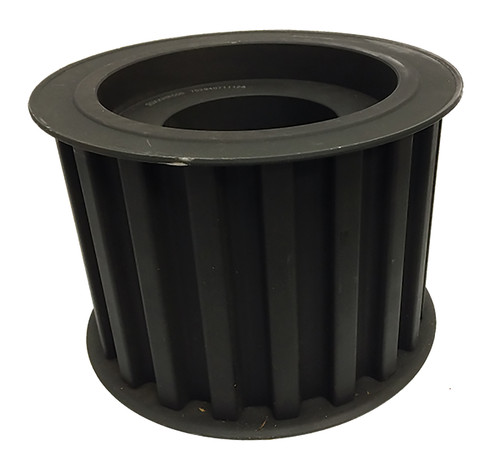

40XXHS500 - Cast Iron Imperial Pitch Pulleys

40XXHS500

40XXHS500 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

40XXHS500, Timing Pulley, Cast Iron

Learn more about 40XXHS500 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40XXHS500
Teeth 40
Tooth Style XXH
For Belt Width (in) 5.0000
Type 12
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for S1 Bushing
Pitch Diameter (in) 15.915
Outside Diameter (in) 15.795
Flange Diameter (in) 16.625
Face Width (in) 5.813
Overall Length (in) 6.188
Min. Bore (in) 1.5625
Unit System Inch
Bushing S1
P.D. (mm) 404.00
O.D. (mm) 401.20
MOQ 1
Weight (lb) 115.00
Part Number Cross Reference 40XXHS500, 40XXHS500, 40XXHS500
