42-2P03-6FA3, Timing Pulley

42-2P03-6FA3

Click to Enlarge

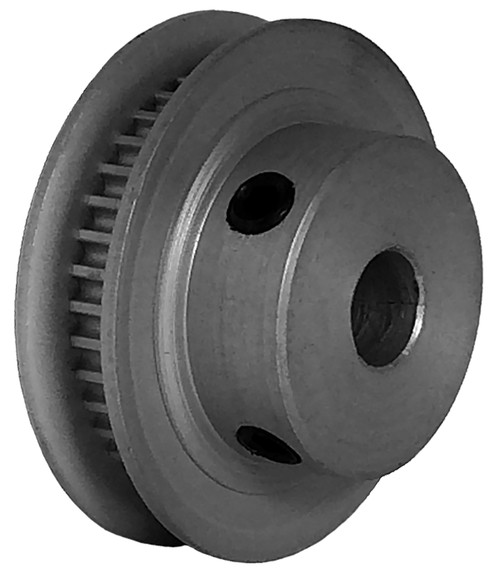

42-2P03-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 42-2P03-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	42-2P03-6FA3
Teeth	42
Tooth Style	2P
For Belt Width (mm)	3.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.053
Outside Diameter (in)	1.033
Flange Diameter (in)	1.260
Face Width (in)	0.275
Overall Length (in)	0.531
Hub Diameter (in)	0.806
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.160
Unit System	Inch
P.D. (mm)	27.00
O.D. (mm)	26.20
MOQ	1
Weight (lb)	0.04
Part Number Cross Reference	A 6A51-042DF0308, A6A51-042DF0308, 42-2GT06-1A X 1/4, 42-2P03-6FA3, 42-2P03-6FA3
Set Screw Quantity	2
