42-8MX12-2012SS, Timing Pulley

42-8MX12-2012SS

Click to Enlarge

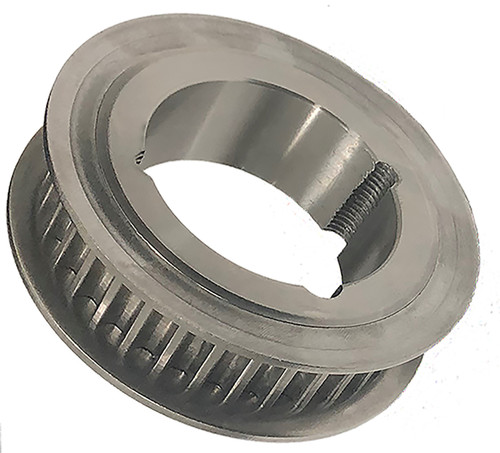

42-8MX12-2012SS, Timing Pulley, Stainless Steel

B&B Manufacturing carries 42-8MX12-2012ss to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	42-8MX12-2012SS
Teeth	42
Tooth Style	8MX
For Belt Width (mm)	12.00
Type	B1F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	4.211
Outside Diameter (in)	4.148
Flange Diameter (in)	4.687
Face Width (in)	0.850
Overall Length (in)	1.250
Pulley Belt Width (in)	0.610
Unit System	Inch
Bushing	2012
P.D. (mm)	107.00
O.D. (mm)	105.40
MOQ	1
Weight (lb)	1.70
Part Number Cross Reference	SS 8MX-42S-12 2012, SS 42G-8M-12-2012 STAINLESS STEEL QTE, 21071703, 42-8MX12-2012SS, 42-8MX12-2012SS
