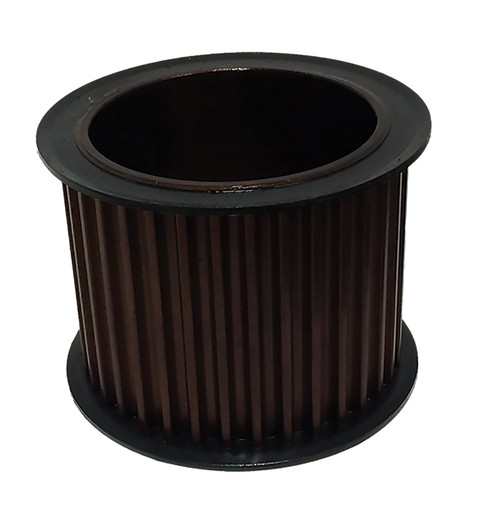

42-8MX62-2012, Timing Pulley

42-8MX62-2012 - Cast Iron Powerhouse® MX Pulleys

42-8MX62-2012

42-8MX62-2012 - Cast Iron Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

42-8MX62-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 42-8MX62-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 42-8MX62-2012
Teeth 42
Tooth Style 8MX
For Belt Width (mm) 62.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 4.211
Outside Diameter (in) 4.148
Flange Diameter (in) 4.687
Face Width (in) 2.906
Overall Length (in) 2.906
Min. Bore (in) 0.5
Pulley Belt Width (in) 2.670
Unit System Inch
Bushing 2012
P.D. (mm) 107.00
O.D. (mm) 105.40
MOQ 1
Weight (lb) 4.10
Part Number Cross Reference 8MX-42S-62, B8MCS-42-62, 42G-8M-62-2012, 8MX-42S-62-2012 HT500 SPKT, 8MPC42S62, 42-8MX62-2012, 482000, 42-8MX62-2012
