42MP025M6FA6, Timing Pulley

42MP025M6FA6 - Aluminum Metric Pulleys

42MP025M6FA6

Click to Enlarge

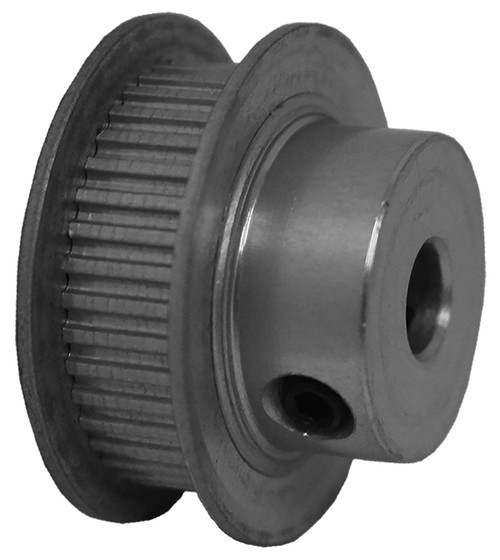

42MP025M6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 42MP025M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 42MP025M6FA6
Teeth 42
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.070
Outside Diameter (in) 1.050
Pulley Belt Width (mm) 7.20
Unit System Metric
P.D. (mm) 27.00
O.D. (mm) 26.70
Flange Diameter (mm) 32.00
Face Width (mm) 10.30
Overall Length (mm) 18.30
Hub Diameter (mm) 20.50
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference A 6A16M042DF6006, A6A16M042DF6006, 42MP025M6FA6
Set Screw Quantity 2
