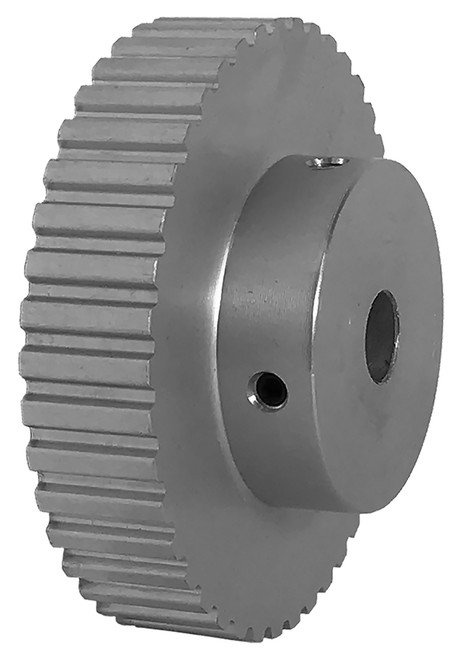

42XL037-6A5, Timing Pulley

42XL037-6A5

Click to Enlarge

42XL037-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 42XL037-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	42XL037-6A5
Teeth	42
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	2.674
Outside Diameter (in)	2.654
Face Width (in)	0.563
Overall Length (in)	1.000
Hub Diameter (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	68.00
O.D. (mm)	67.40
MOQ	1
Weight (lb)	0.39
Part Number Cross Reference	A 6A3-42NF03712, A6A3-42NF03712, PB42XL037, 42XL037 X 3/8 6A, 42XL037-3A 3/8, 42XL037-6A5, 42XL037-6A5
Set Screw Quantity	2
