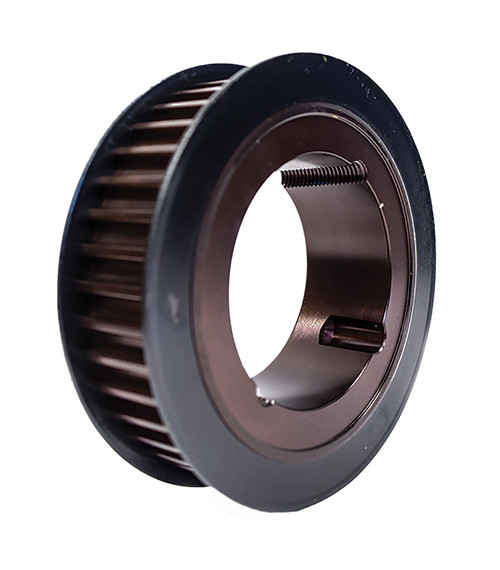

43-14MX37-3020, Timing Pulley

43-14MX37-3020 - Cast Iron Powerhouse® MX Pulleys

Product Details for 43-14MX37-3020

Comparable to: 43-14MX37-3020, 14MX-43S-37, B14MCS-43-37, 43G-14M-37-TL3020, 208398

43-14MX37-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 43-14MX37-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 43-14MX37-3020
Teeth 43
Tooth Style GT2 14mm
For Belt Width (mm) 37.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 7.544
Outside Diameter (in) 7.434
Flange Diameter (in) 8.395
Face Width (in) 1.750
Overall Length (in) 2.063
Min. Bore (in) 0.875
Pulley Belt Width (in) 1.740
Unit System Inch
Bushing 3020
Max. Bore (in) 3.250
Weight (lb) 15.04
Part Number Cross Reference 43-14MX37-3020, 14MX-43S-37, B14MCS-43-37, 43G-14M-37-TL3020, 208398
