44-3M06MIA6, Timing Pulley

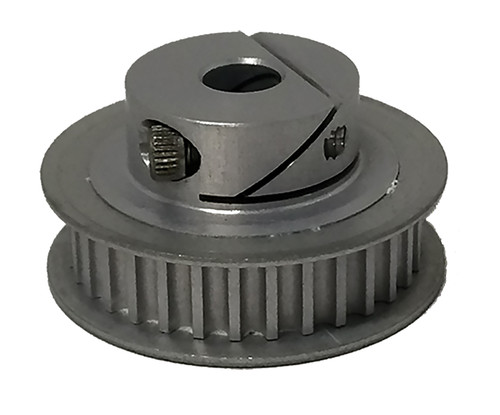

44-3M06MIA6 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

44-3M06MIA6

44-3M06MIA6 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

44-3M06MIA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 44-3M06MIA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-3M06MIA6
Teeth 44
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.654
Outside Diameter (in) 1.624
Unit System Metric
P.D. (mm) 42.00
O.D. (mm) 41.30
Flange Diameter (mm) 45.10
Face Width (mm) 10.30
Overall Length (mm) 18.30
Hub Diameter (mm) 19.10
Number & Screw Size 1 x M2
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference 44-3M06MIA6, 44-3M06MIA6
