44-3P09-6A3, Timing Pulley

44-3P09-6A3 - Aluminum Powerhouse® Pulleys

Product Details for 44-3P09-6A3

Comparable to: 44-3P09-6A3, A 6A53-044NF0908, A6A53-044NF0908

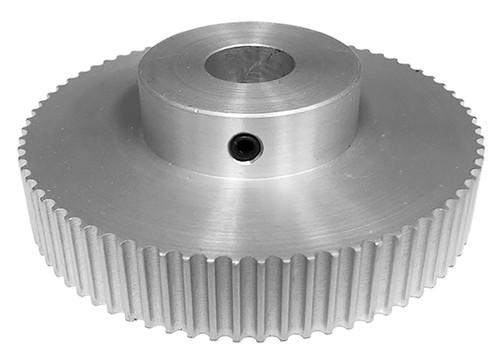

44-3P09-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 44-3P09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-3P09-6A3
Teeth 44
Tooth Style GT 3mm
For Belt Width (mm) 9.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.654
Outside Diameter (in) 1.624
Face Width (in) 0.527
Overall Length (in) 0.833
Hub Diameter (in) 1.300
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 1.05
Weight (lb) 0.16
Part Number Cross Reference 44-3P09-6A3, A 6A53-044NF0908, A6A53-044NF0908
