44-5M09-6A4, Timing Pulley

44-5M09-6A4 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 44-5M09-6A4

Comparable to: A 6A25-044NF0910, A6A25-044NF0910, P44-5M-09AL, 78821047, 44-5M-09 X 5/16

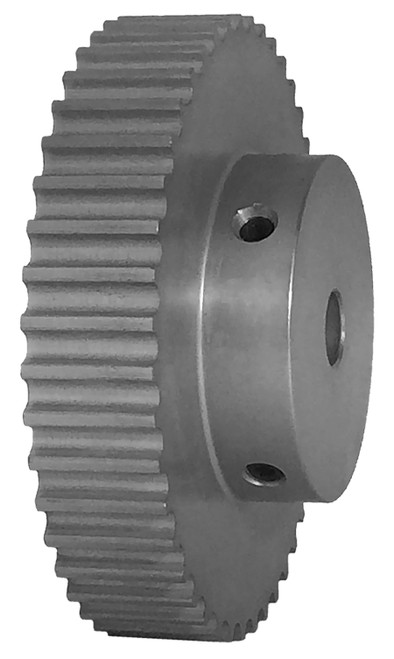

Click to Enlarge

44-5M09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 44-5M09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-5M09-6A4
Teeth 44
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.757
Outside Diameter (in) 2.712
Face Width (in) 0.546
Overall Length (in) 0.937
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Unit System Inch
MOQ 1
Weight (lb) 0.40
Part Number Cross Reference A 6A25-044NF0910, A6A25-044NF0910, P44-5M-09AL, 78821047, 44-5M-09 X 5/16
Set Screw Quantity 2
