44LH100, Timing Pulley

44LH100 - Cast Iron Imperial Pitch Pulleys

44LH100

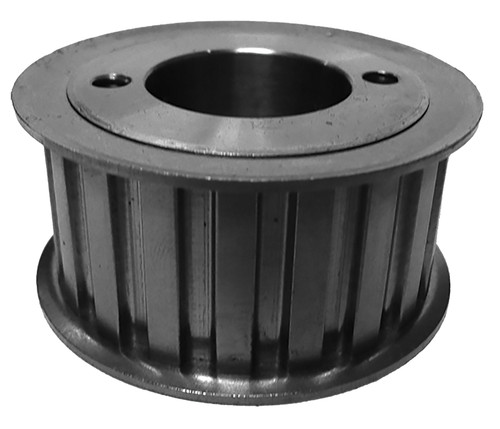

Click to Enlarge

44LH100, Timing Pulley, Cast Iron

Learn more about 44LH100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44LH100
Teeth 44
Tooth Style L
For Belt Width (in) 1.0000
Type 16
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) H
Pitch Diameter (in) 5.252
Outside Diameter (in) 5.222
Flange Diameter (in) 5.500
Face Width (in) 1.250
Overall Length (in) 1.438
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 133.00
O.D. (mm) 132.60
MOQ 1
Weight (lb) 5.83
Part Number Cross Reference 44LH100
