44LP050, Timing Pulley

44LP050 - Cast Iron Imperial Pitch Pulleys

44LP050

44LP050 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

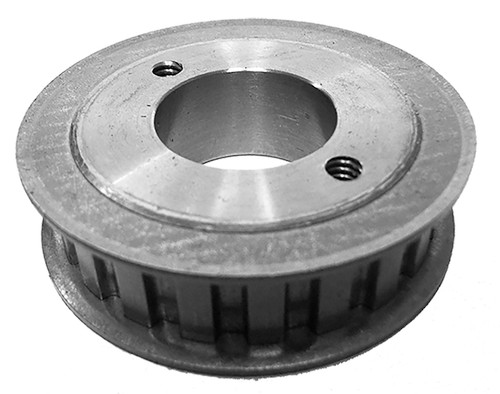

44LP050, Timing Pulley, Cast Iron

Learn more about 44LP050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44LP050
Teeth 44
Tooth Style L
For Belt Width (in) 0.5000
Type 7
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 5.252
Outside Diameter (in) 5.222
Flange Diameter (in) 5.500
Face Width (in) 0.750
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 133.00
O.D. (mm) 132.60
MOQ 1
Weight (lb) 4.10
Part Number Cross Reference 44LP050, 44LP050, 44LP050
