44T5-PS160A, Timing Pulley Stock

44T5-PS160A, A6A34M044T16, A 6A34M044T16, 44T5-PS-160

Product Details for 44T5-PS160A

Comparable to: A 6A34M044T16, A6A34M044T16, 44T5-PS-160, T544, 44T5-PS160A

Click to Enlarge

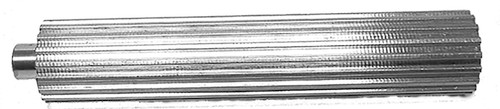

44T5-PS160A, Timing Pulley Stock, Aluminum

Learn more about 44T5-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44T5-PS160A
Teeth 44
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 2.764
Outside Diameter (in) 2.724
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 70.20
O.D. (mm) 69.20
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 3.56
Part Number Cross Reference A 6A34M044T16, A6A34M044T16, 44T5-PS-160, T544, 44T5-PS160A
Shank Length (in) 0.8000
