45-14MX125-6FS16, Timing Pulley

45-14MX125-6FS16 - Cast Iron Powerhouse® MX Pulleys

Product Details for 45-14MX125-6FS16

Comparable to: 45-14MX125-6FS16, PB14MX-45S-125, PB14MCS-45-125, 45G-14M-125-MPB, 208398

Click to Enlarge

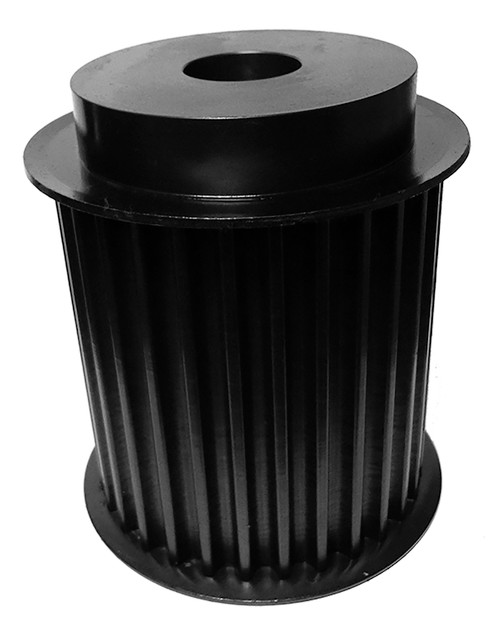

45-14MX125-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 45-14MX125-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45-14MX125-6FS16
Teeth 45
Tooth Style GT2 14mm
For Belt Width (mm) 125.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 7.895
Outside Diameter (in) 7.785
Flange Diameter (in) 8.395
Face Width (in) 5.609
Overall Length (in) 6.813
Hub Diameter (in) 6.760
Min. Bore (in) 1.500
Pulley Belt Width (in) 5.290
Unit System Inch
Max. Bore (in) 6.51
Weight (lb) 80.00
Part Number Cross Reference 45-14MX125-6FS16, PB14MX-45S-125, PB14MCS-45-125, 45G-14M-125-MPB, 208398
