45-3P06-6A4, Timing Pulley

45-3P06-6A4 - Aluminum Powerhouse® Pulleys

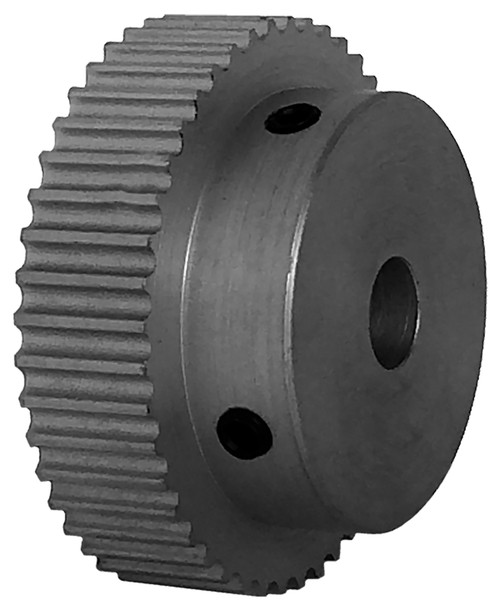

45-3P06-6A4

Click to Enlarge

45-3P06-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 45-3P06-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45-3P06-6A4
Teeth 45
Tooth Style 3P
For Belt Width (mm) 6
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 1.692
Outside Diameter (in) 1.662
Face Width (in) 0.407
Overall Length (in) 0.734
Hub Diameter (in) 1.250
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 43.00
O.D. (mm) 42.20
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference 45-3P06-6A4
Set Screw Quantity 2
