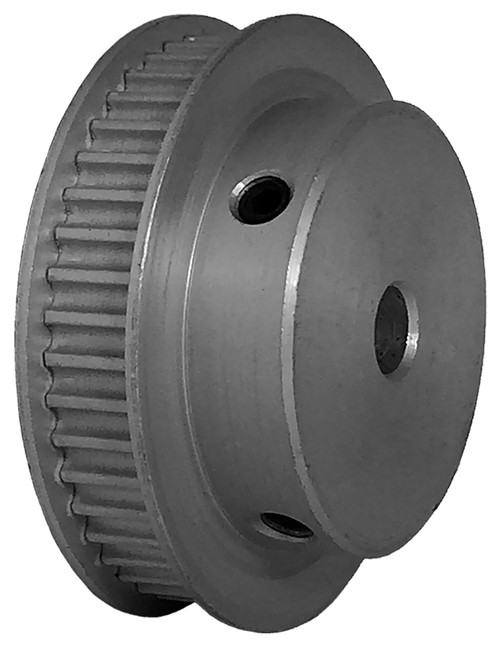

45-3P06-6FA3, Timing Pulley

45-3P06-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 45-3P06-6FA3

Comparable to: 45-3P06-6FA3, A 6A53-045DF0608, A6A53-045DF0608, 3MR-45S-06, 78436065

45-3P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 45-3P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45-3P06-6FA3
Teeth 45
Tooth Style GT 3mm
For Belt Width (mm) 6.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.692
Outside Diameter (in) 1.662
Flange Diameter (in) 1.775
Face Width (in) 0.407
Overall Length (in) 0.713
Hub Diameter (in) 1.300
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.280
Unit System Inch
Max. Bore (in) 1.05
Weight (lb) 0.13
Part Number Cross Reference 45-3P06-6FA3, A 6A53-045DF0608, A6A53-045DF0608, 3MR-45S-06, 78436065
