45-8MX21-2012, Timing Pulley

45-8MX21-2012 - Cast Iron Powerhouse® MX Pulleys

Product Details for 45-8MX21-2012

Comparable to: 8MX-45S-21, 77182045, 8MX45S21-2012, TB 8M-45S-21, 2765279, B8MCS-45-21, 45G-8M-21-2012, 20296075, 481934, 8MPC45S21, GTR-45G-8M-21

Click to Enlarge

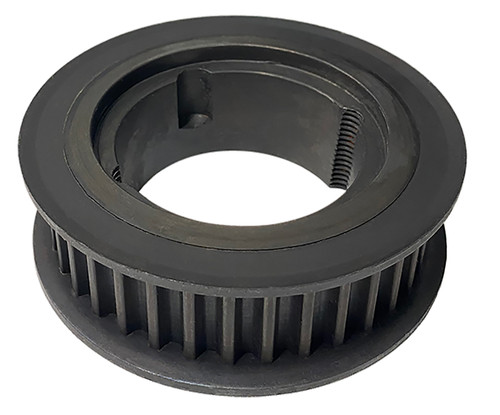

45-8MX21-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 45-8MX21-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45-8MX21-2012
Teeth 45
Tooth Style 8MX
For Belt Width (mm) 21
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 4.511
Outside Diameter (in) 4.448
Flange Diameter (in) 5.005
Face Width (in) 1.250
Overall Length (in) 1.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.960
Unit System Inch
Bushing 2012
MOQ 1
Weight (lb) 3.18
Part Number Cross Reference 8MX-45S-21, 77182045, 8MX45S21-2012, TB 8M-45S-21, 2765279, B8MCS-45-21, 45G-8M-21-2012, 20296075, 481934, 8MPC45S21, GTR-45G-8M-21
