45V1500E, V-Belt Pulley

45V1500E, 5V15.0-4-E, 20180737, 5V154, 4-5V15.0, 4/5V1500E

45V1500E

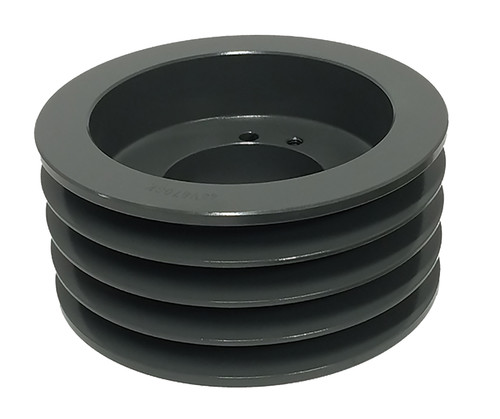

45V1500E, V-Belt Pulley, Cast Iron

Learn more about 45V1500E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45V1500E
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 14.900
Outside Diameter (in) 15.000
Face Width (in) 3.063
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 43.50
Part Number Cross Reference QD4/5V15.00, 45V1500E, 5V15.0-4-E, 20180737, 4-5V15.00-E SHEAVE, 5V1504, 4-5V15.00, 45V1500E, 455322, 45V1500E
Grooves 4

Related Products

Comparable to: QD4/5V15.00, 45V1500E, 5V15.0-4-E, 20180737, 4-5V15.00-E SHEAVE, 5V1504, 4-5V15.00, 45V1500E, 455322, 45V1500E
