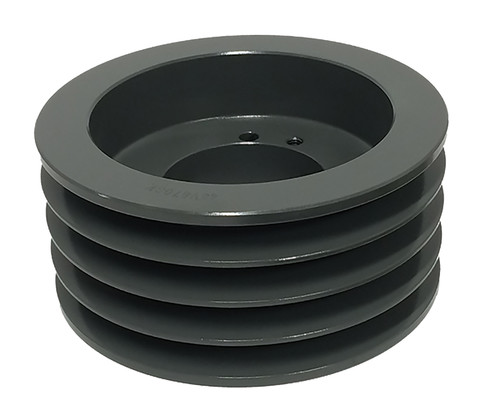

45V5000J-U, V-Belt Pulley

45V5000J-U

45V5000J-U

45V5000J-U, V-Belt Pulley

B&B Manufacturing carries 45V5000J-U to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	45V5000J-U
Type	C-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for J Bushing
Pitch Diameter (in)	49.900
Outside Diameter (in)	50.000
Face Width (in)	3.063
Unit System	Inch
Bushing	J
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	248.00
Part Number Cross Reference	45V5000J-U, 45V5000J-U
Grooves	4

Related Products

Comparable to: 45V5000J-U, 45V5000J-U
