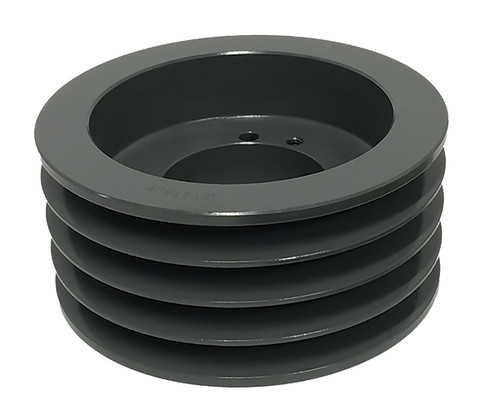

45V520SD, V-Belt Pulley

45V520SD

45V520SD, V-Belt Pulley, Cast Iron

Learn more about 45V520SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	45V520SD
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SD Bushing
Pitch Diameter (in)	5.100
Outside Diameter (in)	5.200
Face Width (in)	3.063
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SD
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	8.80
Part Number Cross Reference	QD4/5V5.20, 45V520SD, 5V5.2-4-SD, 20180832, 4-5V5.20-SD SHEAVE, 5V524, 4-5V5.20, 45V520SD, 455303, 45V520SD
Grooves	4
