48-14M170-6FS16 Powerhouse™ HTD® Pulleys

48-14M170-6FS16

Product Details for 48-14M170-6FS16

Comparable to: 48-14M170-6FS16

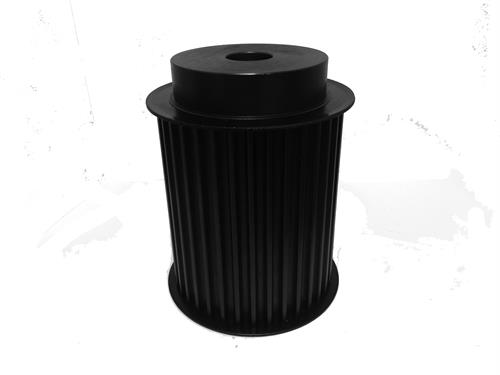

48-14M170-6FS16, Timing Pulley, Powerhouse HTD, 1-1/2 Inch Bore, Cast Iron

Specifications

Product Number 48-14M170-6FS16
Teeth 48
Tooth Style HTD 14mm
For Belt Width (mm) 170.000
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 8.421
Outside Diameter (in) 8.311
Flange Diameter (in) 8.940
Face Width (in) 7.375
Overall Length (in) 7.375
Hub Diameter (in) 7.290
Min. Bore (in) 1.5
Unit System Inch
Max. Bore (in) 7.04
Weight (lb) 94.00
Part Number Cross Reference 48-14M170-6FS16

Documentation

Download Catalog 2015_BBMAN_CATALOG_119.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 48-14M170-6FS16_REACH_cert
RoHS Certification 48-14M170-6FS16_RoHS_cert
