48-14MX68-3525 Powerhouse™ Mx Pulleys

48-14MX68-3525, 14MX-48S-68, B14MCS-48-68, 48G-14M-68-TL3525, 208398

Product Details for 48-14MX68-3525

Comparable to: 48-14MX68-3525, 14MX-48S-68, B14MCS-48-68, 48G-14M-68-TL3525, 208398

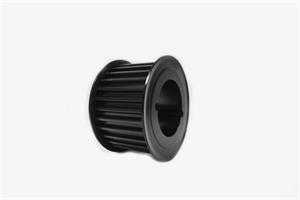

48-14MX68-3525, Timing Pulley, Powerhouse MX, 3525 Bushing, Cast Iron

Specifications

Product Number 48-14MX68-3525
Teeth 48
Tooth Style GT2 14mm
For Belt Width (mm) 68.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3525
Pitch Diameter (in) 8.421
Outside Diameter (in) 8.311
Flange Diameter (in) 8.941
Face Width (in) 3.328
Overall Length (in) 3.328
Pulley Belt Width (in) 3.010
Unit System Inch
Bushing 3525
Weight (lb) 26.00
Part Number Cross Reference 48-14MX68-3525, 14MX-48S-68, B14MCS-48-68, 48G-14M-68-TL3525, 208398

Documentation

Download Catalog 2015_BBMAN_CATALOG_170.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 48-14MX68-3525_REACH_cert
RoHS Certification 48-14MX68-3525_RoHS_cert
