48-2P06-6FA3 Powerhouse® Pulleys

48-2P06-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 48-2P06-6FA3

Comparable to: 48-2P06-6FA3, A 6A51-048DF0608, A6A51-048DF0608, 2MR-48S-06, 78426054, TP2A3W6-

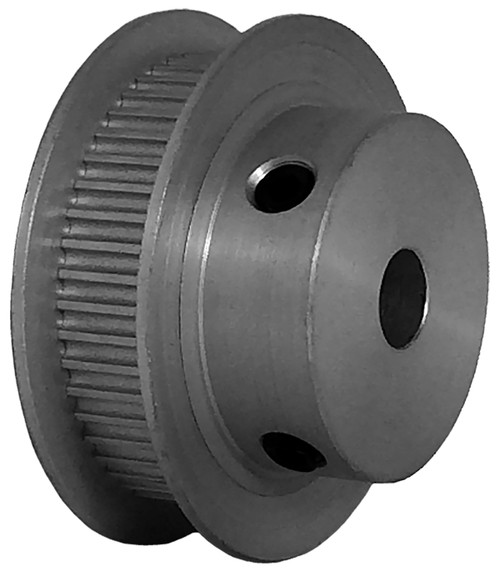

48-2P06-6FA3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Aluminum

Specifications

Product Number 48-2P06-6FA3
Teeth 48
Tooth Style GT 2mm
For Belt Width (mm) 6.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.203
Outside Diameter (in) 1.183
Flange Diameter (in) 1.420
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.936
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.290
Unit System Inch
Max. Bore (in) 0.686
Weight (lb) 0.10
Part Number Cross Reference 48-2P06-6FA3, A 6A51-048DF0608, A6A51-048DF0608, 2MR-48S-06, 78426054, TP2A3W6-
