48-2P09-6FA3 - Aluminum Powerhouse® Pulleys

48-2P09-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 48-2P09-6FA3

Comparable to: 48-2P09-6FA3, A 6A51-048DF0908, A6A51-048DF0908, 2MR-48S-09, 78426063, TP2A3W9-

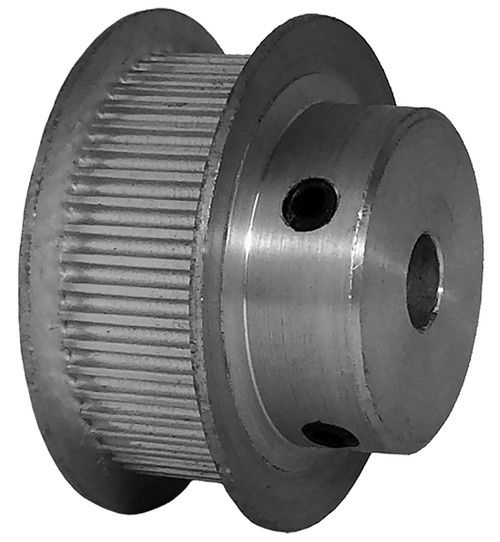

48-2P09-6FA3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Aluminum

B&B Manufacturing provides custom 48-2P09-6FA3 Aluminum Powerhouse® Pulleys for the diverse range of industies we serve. Request a quote today!

Specifications

Product Number 48-2P09-6FA3
Teeth 48
Tooth Style GT 2mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.203
Outside Diameter (in) 1.183
Flange Diameter (in) 1.420
Face Width (in) 0.530
Overall Length (in) 0.843
Hub Diameter (in) 0.936
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.410
Unit System Inch
Max. Bore (in) 0.686
Weight (lb) 0.12
Part Number Cross Reference 48-2P09-6FA3, A 6A51-048DF0908, A6A51-048DF0908, 2MR-48S-09, 78426063, TP2A3W9-
