48-5M09-6A5, Timing Pulley

48-5M09-6A5 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 48-5M09-6A5

Comparable to: A 6A25-048NF0912, A6A25-048NF0912, P48-5M-09AL, 78821095

Click to Enlarge

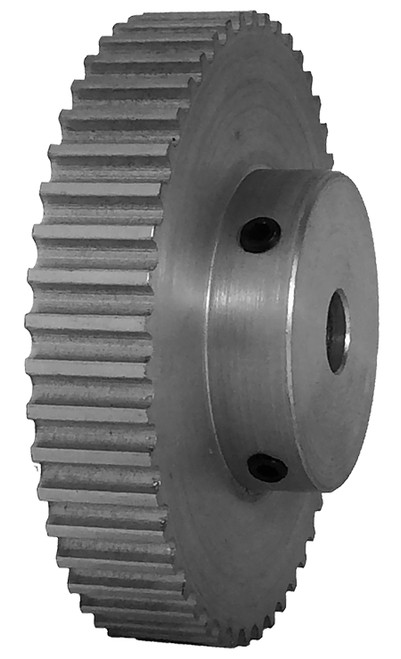

48-5M09-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48-5M09-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48-5M09-6A5
Teeth 48
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 3/8 Inch Finished Bore
Pitch Diameter (in) 3.008
Outside Diameter (in) 2.963
Face Width (in) 0.546
Overall Length (in) 0.937
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
MOQ 1
Weight (lb) 0.45
Part Number Cross Reference A 6A25-048NF0912, A6A25-048NF0912, P48-5M-09AL, 78821095
Set Screw Quantity 2
