48-5M15M6A12 Powerhouse® HTD® Pulleys

48-5M15M6A12 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 48-5M15M6A12

Comparable to: 48-5M15M6A12, A 6A25M048NF1512, A6A25M048NF1512

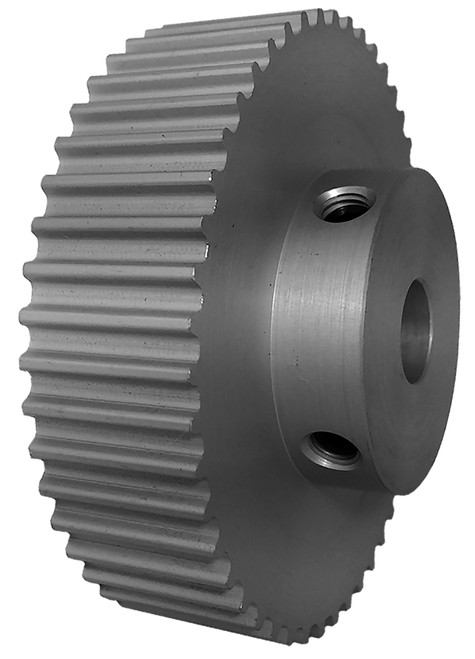

48-5M15M6A12, Timing Pulley, Powerhouse HTD, 12 mm Bore, Aluminum

Specifications

Product Number 48-5M15M6A12
Teeth 48
Tooth Style HTD 5mm
For Belt Width (mm) 15.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 12.00
Set Screw 2 x M6 @ 90°
Pulley Belt Width (mm) 15.00
Unit System Metric
P.D. (mm) 76.40
O.D. (mm) 75.30
Face Width (mm) 19.80
Overall Length (mm) 30.10
Hub Diameter (mm) 38.10
Weight (lb) 0.48
Part Number Cross Reference 48-5M15M6A12, A 6A25M048NF1512, A6A25M048NF1512
