48-8MX12-2012SS, V-Belt Pulley

48-8MX12-2012SS

Click to Enlarge

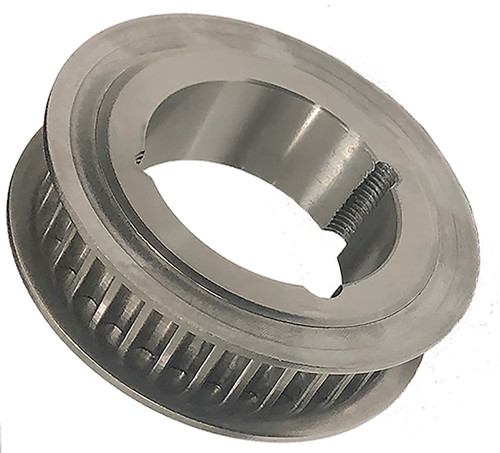

48-8MX12-2012SS, V-Belt Pulley, Stainless Steel

B&B Manufacturing carries 48-8MX12-2012ss to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	48-8MX12-2012SS
Teeth	48
Tooth Style	8MX
For Belt Width (mm)	12.00
Type	B1F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	4.812
Outside Diameter (in)	4.749
Unit System	Inch
Bushing	2012
P.D. (mm)	122.00
O.D. (mm)	120.60
MOQ	1
Weight (lb)	2.65
Part Number Cross Reference	SS 8MX-48S-12 2012, SS 48G-8M-12-2012 STAINLESS STEEL QTE, 21071705, 48-8MX12-2012SS, 48-8MX12-2012SS
