48LH100, Timing Pulley

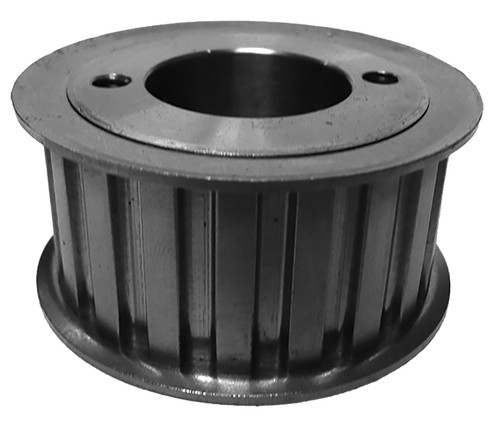

48LH100 - Cast Iron Imperial Pitch Pulleys

48LH100

48LH100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

48LH100, Timing Pulley, Cast Iron

Learn more about 48LH100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48LH100
Teeth 48
Tooth Style L
For Belt Width (in) 1.0000
Type 16
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 5.730
Outside Diameter (in) 5.700
Flange Diameter (in) 6.000
Face Width (in) 1.250
Overall Length (in) 1.438
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 146.00
O.D. (mm) 144.80
MOQ 1
Weight (lb) 7.02
Part Number Cross Reference 48LH100, 48LH100, 48LH100
