48MP025-6FA3 - Aluminum Imperial Pitch Pulleys

48MP025-6FA3 - Aluminum Imperial Pitch Pulleys

Product Details for 48MP025-6FA3

Comparable to: 48MP025-6FA3, A 6A16-048DF2508, A6A16-048DF2508, PB48MXL025, 78260148, PT048A08L04T, TP7A4W4-

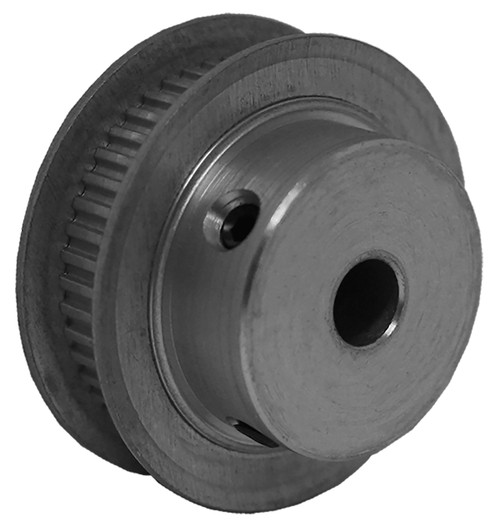

48MP025-6FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Our 48MP025-6FA3 Aluminum Imperial Pitch Pulleys are made from the highest quality materials & can meet any company's needs . Contact B&B Manufacturing today for a quote!

Specifications

Product Number 48MP025-6FA3
Teeth 48
Tooth Style MXL
For Belt Width (in) 0.250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.222
Outside Diameter (in) 1.202
Flange Diameter (in) 1.420
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.936
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.290
Unit System Inch
Max. Bore (in) 0.686
Weight (lb) 0.10
Part Number Cross Reference 48MP025-6FA3, A 6A16-048DF2508, A6A16-048DF2508, PB48MXL025, 78260148, PT048A08L04T, TP7A4W4-
