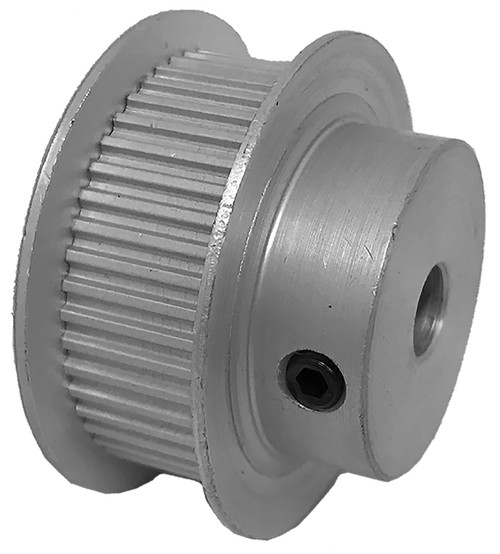

48MP037-6FA3, Timing Pulley

48MP037-6FA3, A6A16-048DF3708, A 6A16-048DF3708, 48MP-037 1/4 6F, 48MXL037-1A X 1/4

Product Details for 48MP037-6FA3

Comparable to: 48MP037-6FA3, A 6A16-048DF3708, A6A16-048DF3708, 48MP-037 1/4 6F, 48MXL037-1A X 1

48MP037-6FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Learn more about 48MP037-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48MP037-6FA3
Teeth 48
Tooth Style MXL
For Belt Width (in) 0.375
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.222
Outside Diameter (in) 1.202
Flange Diameter (in) 1.420
Face Width (in) 0.530
Overall Length (in) 0.844
Hub Diameter (in) 0.936
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.410
Unit System Inch
Max. Bore (in) 0.686
Weight (lb) 0.10
Part Number Cross Reference 48MP037-6FA3, A 6A16-048DF3708, A6A16-048DF3708, 48MP-037 1/4 6F, 48MXL037-1A X 1
