48V1700F, V-Belt Pulley

48V1700F, QD4/8V17.

Product Details for 48V1700F

Comparable to: QD4/8V17.00, 4 8V 1700 F, 4-8V1700.F, 8V17.0-4-F PULLEY, 20180955, 4/8V17.0–F, 48V17.0, 8V17.0-4-F, 4/8V1700F, 455420

Click to Enlarge

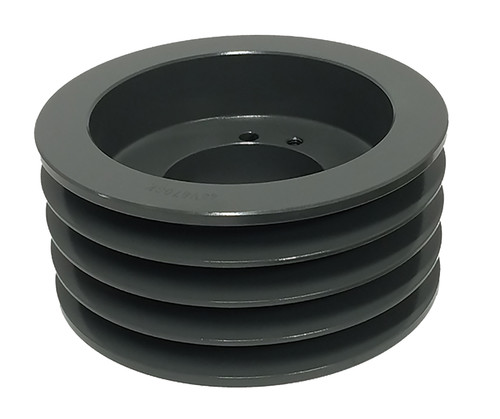

48V1700F, V-Belt Pulley, Cast Iron

Specifications

Product Number 48V1700F
Material Cast Iron
Bore Type QD
Pitch Diameter (in) 16.800
Outside Diameter (in) 17.000
Face Width (in) 4.875
Min. Bore (in) 1.000
Bushing F
Max. Bore (in) 4.000
E (in) 5/32
L (in) 3 3/4
M (in) 1 9/32
MOQ 1
Weight (lb) 104.00
Part Number Cross Reference QD4/8V17.00, 4 8V 1700 F, 4-8V1700.F, 8V17.0-4-F PULLEY, 20180955, 4/8V17.0–F, 48V17.0, 8V17.0-4-F, 4/8V1700F, 455420
Grooves 4
Set Screw Quantity 0
