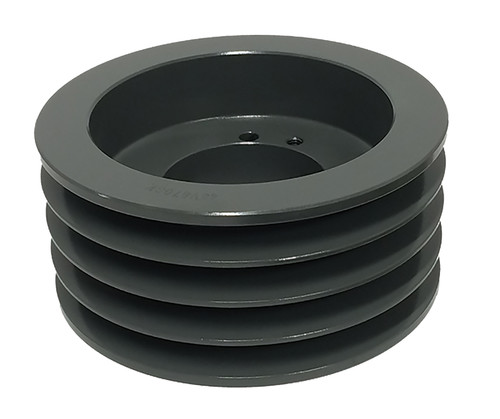

48V4450M, V-Belt Pulley

48V4450M

48V4450M, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 48V4450M to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	48V4450M
Type	C-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for M Bushing
Pitch Diameter (in)	44.300
Outside Diameter (in)	44.500
Face Width (in)	4.875
Min. Bore (in)	2
Unit System	Inch
Bushing	M
E (in)	0.7812
L (in)	6.75
M (in)	1.09375
MOQ	1
Sheave Type	8V
For Belt Type	8V
Weight (lb)	363.00
Part Number Cross Reference	QD4/8V44.50, 4 8V 4450 M, 4-8V4450.M, 8V44.5-4-M PULLEY, 20181015, 4-8V44.50-M SHEAVE, 8V4454, 48V44.5, 8V44.5-4-M, 4-8V44.50, 48V4450M, 456656, 48V4450M
Grooves	4
