48XL037-6A7, Timing Pulley

48XL037-6A7

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

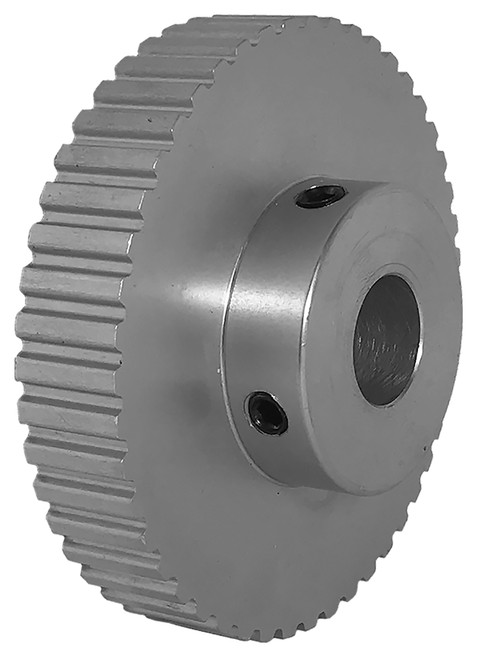

48XL037-6A7, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 48XL037-6A7 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	48XL037-6A7
Teeth	48
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.625
Bore Description	5/8 Inch Bore
Pitch Diameter (in)	3.056
Outside Diameter (in)	3.036
Face Width (in)	0.563
Overall Length (in)	1.000
Hub Diameter (in)	1.500
Unit System	Inch
P.D. (mm)	78.00
O.D. (mm)	77.10
MOQ	1
Weight (lb)	0.48
Part Number Cross Reference	48XL037-6A7, 48XL037-6A7

Comparable to: 48XL037-6A7, 48XL037-6A7
