4B34SD, V-Belt Pulley

4B34SD

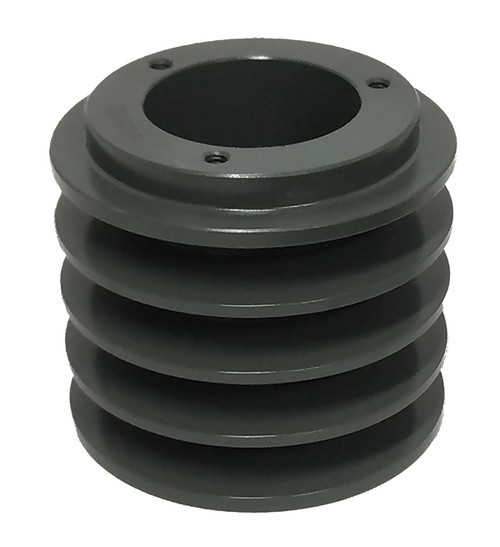

4B34SD, V-Belt Pulley, Cast Iron

Learn more about 4B34SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	4B34SD
Type	E-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SD Bushing
Outside Diameter (in)	3.750
Face Width (in)	3.250
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SD
MOQ	1
Pitch Dia. "A"	3.000
Pitch Dia. "B"	3.400
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	5.50
Part Number Cross Reference	QD4A3.2/B3.4, 4B34.SD, 4B34SD, 3.4-4B-SD, 20179196, 4B34-SD SHEAVE, 344B, 4B3.4, 3.4-4B-SD, 4/B340SD, 4B34, 4BQ34, 4B34SD, 4B34SD, 455642, 4B34SD
Grooves	4
