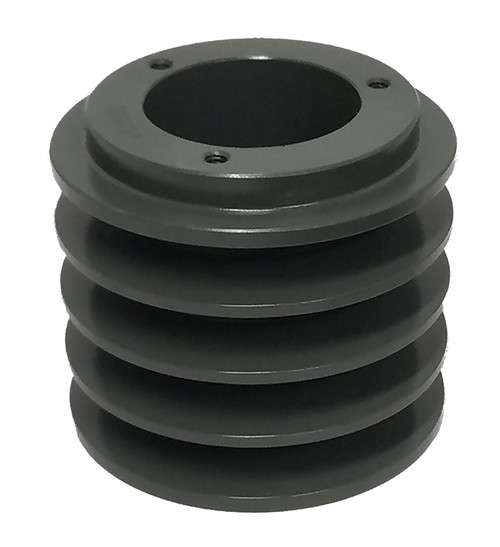

4B380E, V-Belt Pulley

4B380E

4B380E, V-Belt Pulley, Cast Iron

Learn more about 4B380E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	4B380E
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for E Bushing
Outside Diameter (in)	38.350
Face Width (in)	3.250
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
MOQ	1
Pitch Dia. "A"	37.600
Pitch Dia. "B"	38.000
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	109.00
Part Number Cross Reference	QD4A37.8/B38.0, 4B380.E, 4B380E, 38.0-4B-E, 20179249, 4B380-E SHEAVE, 3804B, 4B38.0, 38.0-4B-E, 4/B3800E, 4B380, 4BQ380, 4B380E, 4B380E, 455674, 4B380E
Grooves	4
