4B54SD, V-Belt Pulley

4B54SD, 5.4-4B-SD, 20179325, 544B, 4B54

Product Details for 4B54SD

Comparable to: QD4A5.2/B5.4, 4B54.SD, 4B54SD, 5.4-4B-SD, 20179325, 544B, 4B5.4, 4/B540SD, 82246604, 4B54, 4BQ54

Click to Enlarge

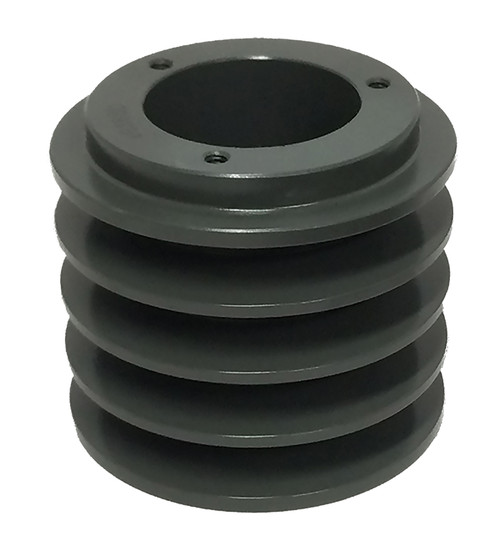

4B54SD, V-Belt Pulley, Cast Iron

Learn more about 4B54SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 4B54SD
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SD
Outside Diameter (in) 5.750
Face Width (in) 3.250
Min. Bore (in) 0.500
Unit System Inch
Bushing SD
MOQ 1
Pitch Dia. "A" 5.000
Pitch Dia. "B" 5.400
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 8.20
Part Number Cross Reference QD4A5.2/B5.4, 4B54.SD, 4B54SD, 5.4-4B-SD, 20179325, 544B, 4B5.4, 4/B540SD, 82246604, 4B54, 4BQ54
Grooves 4
