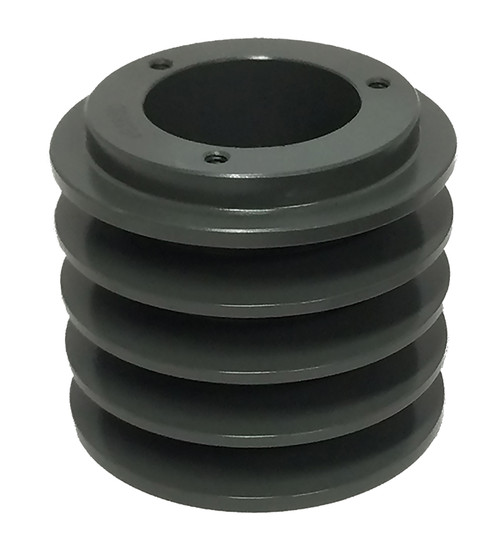

4B60SD, V-Belt Pulley

4B60SD

4B60SD, V-Belt Pulley, Cast Iron

Learn more about 4B60SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	4B60SD
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SD Bushing
Outside Diameter (in)	6.350
Face Width (in)	3.250
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SD
MOQ	1
Pitch Dia. "A"	5.600
Pitch Dia. "B"	6.000
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	10.40
Part Number Cross Reference	QD4A5.8/B6.0, 4B60.SD, 4B60SD, 6.0-4B-SD, 20179370, 4B60-SD SHEAVE, 604B, 4B6.0, 6.0-4B-SD, 4/B600SD, 82245788, 4B60, 4BQ60, 4B60SD, 4B60SD, 455655, 4B60SD
Grooves	4
