4B66SD, V-Belt Pulley

4B66SD, 6.6-4B-SD, 20179400, 664B, 4B66

Product Details for 4B66SD

Comparable to: QD4A6.4/B6.6, 4B66.SD, 4B66SD, 6.6-4B-SD, 20179400, 664B, 4B6.6, 4/B660SD, 82246562, 4B66, 4BQ66

Click to Enlarge

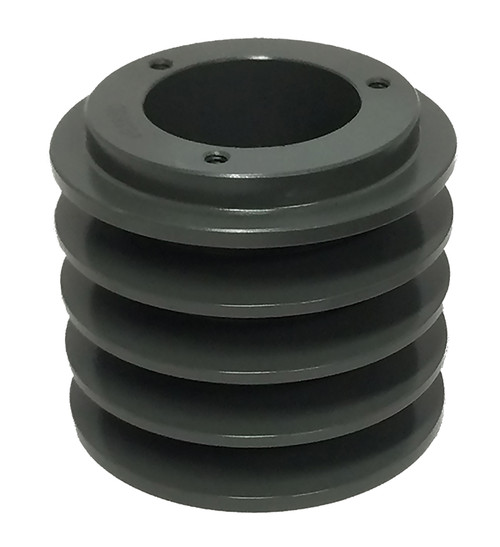

4B66SD, V-Belt Pulley, Cast Iron

Learn more about 4B66SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 4B66SD
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SD
Outside Diameter (in) 6.950
Face Width (in) 3.250
Min. Bore (in) 0.500
Unit System Inch
Bushing SD
MOQ 1
Pitch Dia. "A" 6.200
Pitch Dia. "B" 6.600
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 12.40
Part Number Cross Reference QD4A6.4/B6.6, 4B66.SD, 4B66SD, 6.6-4B-SD, 20179400, 664B, 4B6.6, 4/B660SD, 82246562, 4B66, 4BQ66
Grooves 4
