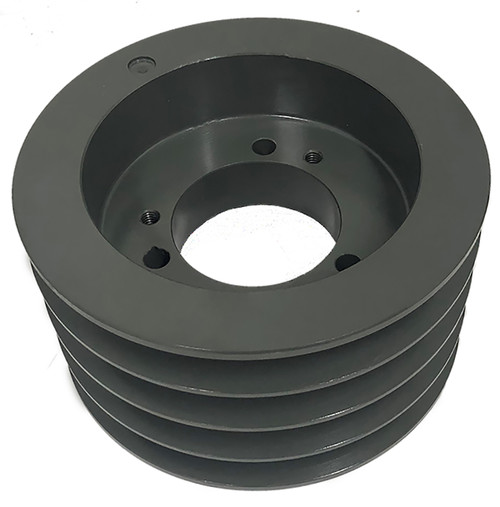

4C100E, V-Belt Pulley

4C100E, QD4C10

4C100E

4C100E, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 4C100E to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 4C100E
Type A-2
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Outside Diameter (in) 10.400
Face Width (in) 4.250
Min. Bore (in) 0.875
Unit System Inch
Bushing E
L (in) 2.75
MOQ 1
Sheave Type C
Weight (lb) 38.10
Part Number Cross Reference QD4C10.0, 4C100.E, 4C100E, 10.0-4C-E, 20178914, 4C100-E SHEAVE, 1004C, 4C10.0, 4/C1000E, 82246489, 4C100, 4C100E, 455838, 4C100E
Grooves 4

Related Products

Comparable to: QD4C10.0, 4C100.E, 4C100E, 10.0-4C-E, 20178914, 4C100-E SHEAVE, 1004C, 4C10.0, 4/C1000E, 82246489, 4C100, 4C100E, 455838, 4C100E
