4C130E, V-Belt Pulley

4C130E, QD4C13

Product Details for 4C130E

Comparable to: QD4C13.0, 4C130.E, 13.0-4C-E, 4C13.0, 4/C1300E

Click to Enlarge

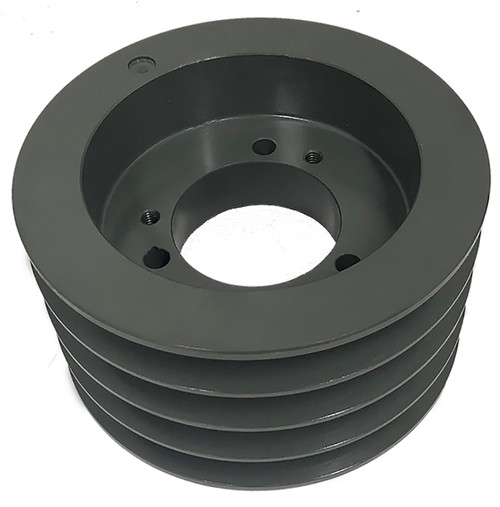

4C130E, V-Belt Pulley, Cast Iron

Specifications

Product Number 4C130E
Material Cast Iron
Bore Type QD
Outside Diameter (in) 13.400
Face Width (in) 4.250
Min. Bore (in) 0.875
Bushing E
Max. Bore (in) 3.500
L (in) 2.750
MOQ 1
Weight (lb) 49.40
Part Number Cross Reference QD4C13.0, 4C130.E, 13.0-4C-E, 4C13.0, 4/C1300E
Grooves 4
Set Screw Quantity 0
