4C160E, V-Belt Pulley

4C160E, QD4C16

Product Details for 4C160E

Comparable to: QD4C16.0, 4C160.E, 16.0-4C-E, 4C16.0, 4/C1600E

Click to Enlarge

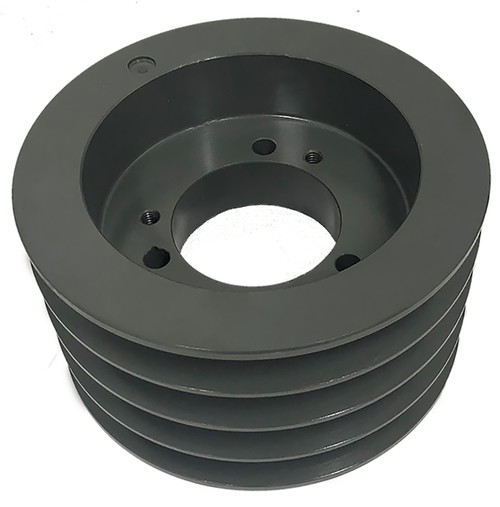

4C160E, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 4C160E in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 4C160E
Material Cast Iron
Bore Type QD
Outside Diameter (in) 16.400
Face Width (in) 4.250
Min. Bore (in) 0.875
Unit System Inch
Bushing E
L (in) 2.750
MOQ 1
Weight (lb) 60.20
Part Number Cross Reference QD4C16.0, 4C160.E, 16.0-4C-E, 4C16.0, 4/C1600E
Grooves 4
Set Screw Quantity 0
