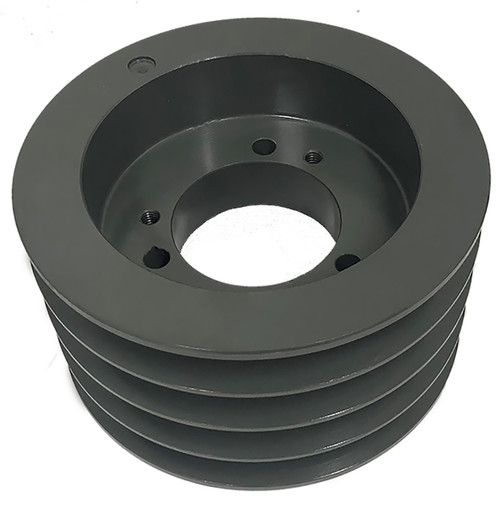

4C180E, V-Belt Pulley

4C180E

4C180E, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 4C180E to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	4C180E
Type	A-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for E Bushing
Outside Diameter (in)	18.400
Face Width (in)	4.250
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
L (in)	2.75
MOQ	1
Sheave Type	C
Weight (lb)	68.60
Part Number Cross Reference	QD4C18.0, 4C180.E, 4C180E, 18.0-4C-E PULLEY, 20179102, 4C180-E SHEAVE, 1804C, 4C18.0, 4/C1800E, 4C180, 4C180E, 455845, 4C180E
Grooves	4
