4C360F, V-Belt Pulley

4C360F, QD4C36

4C360F

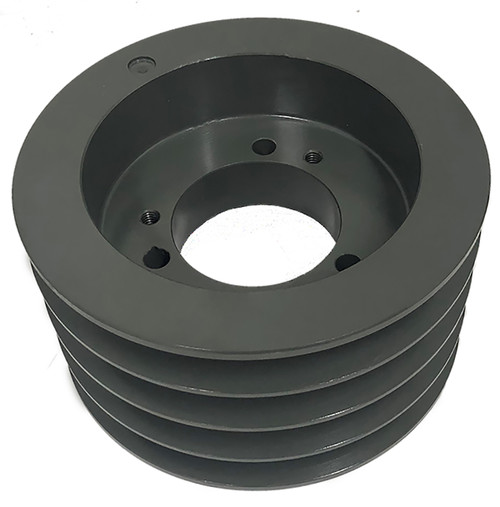

4C360F, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 4C360F to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 4C360F
Type D-3
Material Cast Iron
Bore Type QD
Outside Diameter (in) 36.400
Face Width (in) 4.250
Min. Bore (in) 1.000
Unit System Inch
Bushing F
L (in) 3.750
MOQ 1
Weight (lb) 194.20
Part Number Cross Reference QD4C36.0, 4C360.F, 36.0-4C-F PULLEY, 20179240, 4C36.0, 4/C3600F, 4C360F
Grooves 4

Related Products

Comparable to: QD4C36.0, 4C360.F, 36.0-4C-F PULLEY, 20179240, 4C36.0, 4/C3600F, 4C360F
