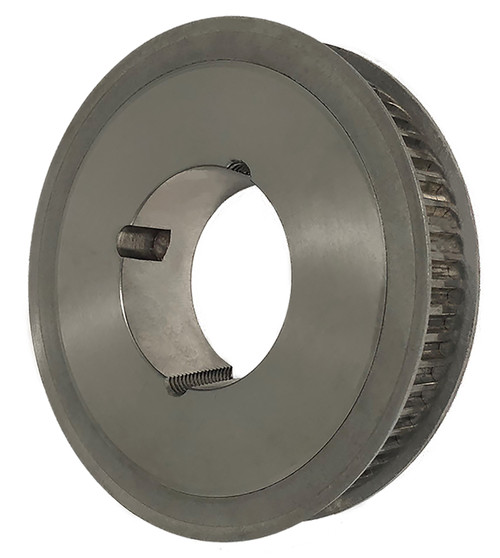

50-8MX21-2012SS, Timing Pulley

50-8MX21-2012SS

50-8MX21-2012SS

50-8MX21-2012SS

Line Drawing

Click to Enlarge

50-8MX21-2012SS, Timing Pulley, Stainless Steel

B&B Manufacturing carries 50-8MX21-2012ss to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	50-8MX21-2012SS
Teeth	50
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	A1F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	5.013
Outside Diameter (in)	4.950
Flange Diameter (in)	5.320
Face Width (in)	1.250
Overall Length (in)	1.250
Min. Bore (in)	0.5
Unit System	Inch
Bushing	2012
P.D. (mm)	127.00
O.D. (mm)	125.70
MOQ	1
Weight (lb)	4.42
Part Number Cross Reference	SS 8MX-50S-21 2012, SS 50G-8M-21-2012, 21071719, 50-8MX21-2012SS, 50-8MX21-2012SS

Comparable to: SS 8MX-50S-21 2012, SS 50G-8M-21-2012, 21071719, 50-8MX21-2012SS, 50-8MX21-2012SS
